Home / Machines / Expanded Metal Machine / Expanded Metal Machine KC-48

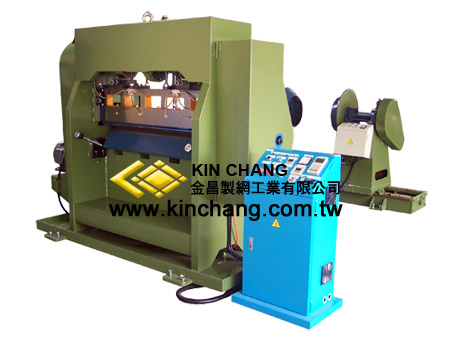

KC-48 Expanded metal machine (automatic)

Machine specification:
1. Maximum cutting width: 1250 mm
2. Stroke per minute: 300 ~ 500
3. Material thickness: 0.3 ~ 3.0 mm
4. SW: 40 mm max.
5. Motor power: 10 ~ 30 hp

Expanded Metal Machine Comparison chart

MODEL
MAXIMUM
CUTTING WIDTH
S.P.M
MATERIAL THICKNESS
MAXIMUM SW
MOTOR POWER
KC-96 2500 mm 60 ~ 200 0.4 ~ 8.0 mm 50 mm 20 ~ 75 hp
KC-60 1550 mm 100 ~ 300 0.4 ~ 8.0 mm 50 mm 20 ~ 75 hp
KC-48 1250 mm 300 ~ 500 0.3 ~ 3.0 mm 40mm 10 ~ 30 hp
KC-40 1000 mm 500 ~ 800 0.3 ~ 1.2 mm 12mm 10 ~ 20 hp
KC-24 610 mm 500 ~ 800 0.3 ~ 1.2 mm 10mm 5 ~ 7.5 hp
KC-18 500 mm 500 ~ 1000 0.3~ 0.8mm 8mm 5 ~ 7.5 hp
KC-12 305 mm 800~1000 0.12 ~ 0.5 mm 4 mm 5 ~ 7.5 hp
For more information about a specific expanded metal machine, please click the model name above.

Typical Expanded Metal Application:
Car grills
Machine guards
Enclosure
Fences
Cages
Lockers
Racks
Shelving
Ceiling panels
Doors
Baskets
Tool room
Flooring
Screening
Vents
Partitions
Platforms
Litter Bins
trays
Balcony railings
