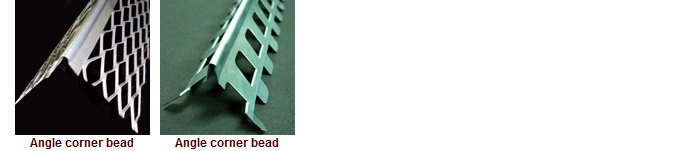

Angle Bead Machine is used to make angle beads or corner beads. Corner beads are used on the corners of walls in construction to reinforce the corners and provide a nicer appearance.
Automatic Angle Bead Making Machine | Model: KC-AB
DESCRIPTION
VOLTAGE
S.P.M
DIMENSIONS
WEIGHT
Main Machine
350-450
About 1.5 x 1.5 x 1.5 M
About 4000 kg
Un-coiler
Loading Capacity: 1000 kg max
Forming Roller
2 in 1 & 6-Sectional forming rollers
Shear
Hydraulic system
Finished product Gather Rack
Flat Table
Mold
1 set (According to the buyer’s sample)
Control Panel
1 set
Tool Box
1 set
A.Raw Material： Galvanized Iron
B.Raw material thickness：0.45±0.05mm
C.Product：According to the sample x 3M max
D.Operation area space：Approximately 1.5M x 15M
E.Production:about 525-675meter per hour (mesh = 12×25mm)
